Residential Snow & Ice Heated Walkway Mat

Residential Snow & Ice Heated Walkway Mat

FOB Price:
US 9-12 / Square Meter
Min.Order Quantity:
500 Square
Supply Ability:
15000 Square per Meter/Square
Port:
Shanghai, Shenzhen or Guangzhou
Place of Origin:
Sichuan, China (Mainland)
Payment Terms:
L/C,T/T,Residential Snow & Ice Heated Walkway Mat
Brand:
ANLT
Products Model:
ALT mat
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: ANLT

    Model Number: ALT mat

    Place of Origin: Sichuan, China (Mainland)

Packaging & Delivery

  • Packaging Details: Residential Snow & Ice Heated Walkway Mat package: white box with user manual
  • Delivery Detail: Shipped in 15 days after payment

Specifications

Product Description

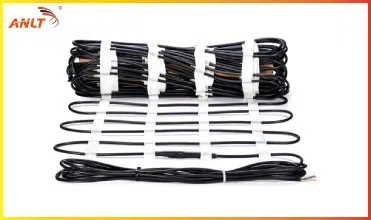

Residential Snow & Ice Heated Walkway Mat

No more shovelling, salting
and slipping in Winter.
ANLT Snow-Melting Mat
Outdoor ELectric Snow-Melting System

Walkway, Driveway Snow-Melting System

Snow melting is the process of eliminating snow and ice build up from an outdoor surface, usually walk ways and driveways, using an independent heating source designed specifically for the application, resulting in a heated driveway.
Installing an Electric Snow Melting system offers a permanent solution to the problems caused by cold weather, improves safety and eliminates the need and costs to use potentially damaging deicing chemicals, or buy snow clearing machinery, or hire outdoor services.

Benefits & Advantages

- Electric Snow Melting systems run off of electrical resistance cables, using electric energy to generate heat.
- No need to install a boiler, return manifolds, or circulating pumps, all you need is an electrical source and a controller.
- Quicker to respond and warm up, since it is electric based.

- Perfect for tire treads of driveway, front walkway, parking lots, stairs, ramps, bridges, etc.

- Can be used in concrete, asphalt, paver or stone and ceramic tiles.
- Twin conductor cable, one cold lead.
- Quick and flexible installation. Simply roll out the mat with pre-spaced cable.
- Durable construction.

Technical Parameters
Cable Construction
Twin conductor, one cold lead
Working Voltage
120V, 208V, 240V, 277V, 347V, 480V, 600V
Output
37W/sq.ft (400W/m2), 50W/sq.ft (540W/m2)±10%
Heating Element Size
6.5’ (2.0 m) – 80’ (24.4 m) long x 2’ (0.6m) wide
Bending radius
1.5" (38mm)
Cable Diameter
1/4" (6.5mm)
Conductor Insulation
Fluoropolymer and XLPE
Outer Jacket
PVC
Max. rated Temperature
220℉(105℃)
Min. Installation Temperature
40℉(5℃)
Cold lead
20ft (6m) length

Application

Walkway, Driveway, Roof snow melting and de-icing heating mat

Order Information

More products for your to Choose

 Electric Floor Heating Mat                Snow Melting Mat       Electric Floor Heating Cable       Thermostats

Company Information

1. About Us

Chengdu ANLT Cable Manufacture Co., Ltd. is a leading manufacturer of Electric Floor Heating Cable & Mat, Thermostats, Temperature Controller, Communication Cables and Electric products. With advanced and cost-effective heating products, ANLT believes in engaging with customers while providing customized services. As top three leading electric heating system manufacturer in China, it is the goal of ANLT to deliver heating products with excellent quality and to offer quick services to our customers.

Experience:
Established in 2009, located in Chengdu, China which is known as “Land of Aboundance”, ANLT has proven to be reliable and trustworthy partners to help all aspects of electric heating for room heating, pipe warm preservation, snow-melting, de-icing, de-frosting, etc.
* Years of combined experience in researching and developing electric heating products.
* A factory with over 150 skilled and qualified employees, including experienced R&D engineers, technical experts and sales representatives.

2. Factory Overview

Located in Xindu Dist., Chengdu City, ANLT factory is more than 6000sq.m with over 150 skilled and qualified employees.
1. ISO9001 certified
2. Over 6000sq.m
3. More than 150skilled and qualified employees
4.10 experienced technical engineers
5. 5 qualified QC
6. 8 normal working hour with 2 shifts
7. Average production capacity is 15000sq.m per month
8. Strict and comprehensive test and inspection standard -- over 5000V high-voltage test,
9. 5 times of water-resistant test
10. 25-year warranty, at least 50-year working life

3. Our Products

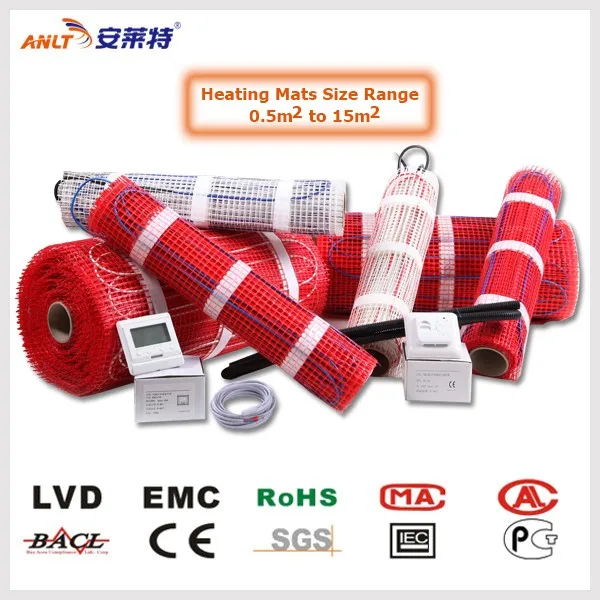

-- Electric Floor Heating Mats

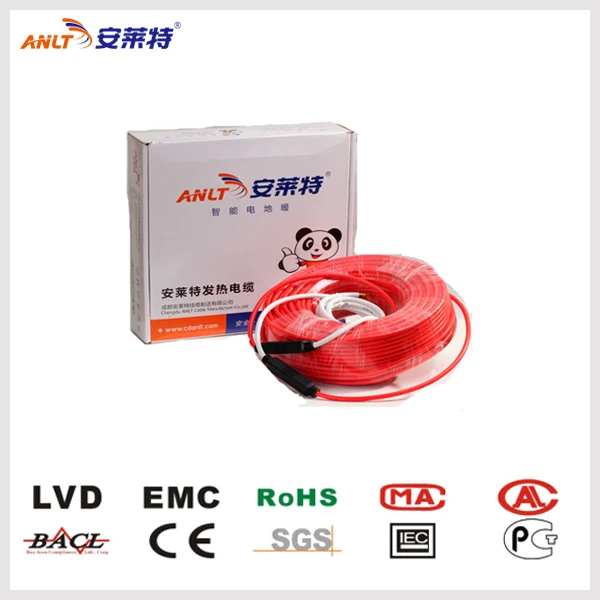

-- Electric Floor Heating Cables

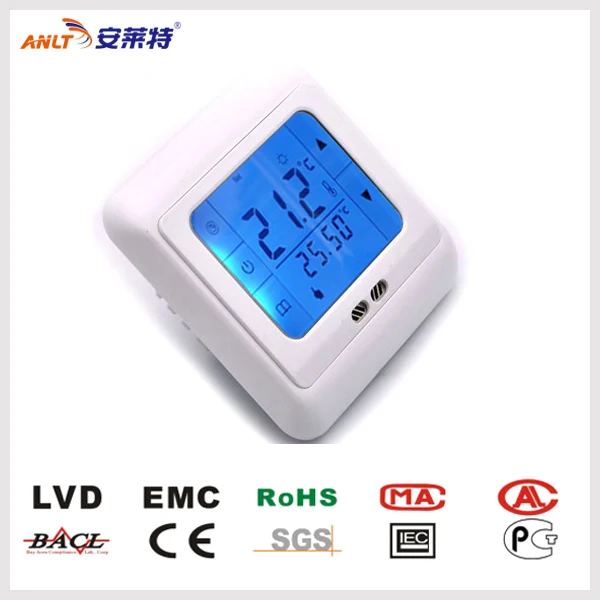

-- Thermostats / Temperature Controllers

-- Accessories

4. Our Services

We offer an extensive array of services with products being widely used in heating application and OEM services.

5. Company Certifications

Our products are certified with CE, RoHS and PCT.
